Purpose
Observation of fractures, dislocations, lesions, and trauma to the humerus.
Presence or absence of osteoporosis.

Prior confirmation
Confirm whether the patient is to be radiographed in the standing (seated) or supine position.
If a fracture is suspected, do not move the arm.
Remove any obstacles.

Positioning

HumeralLAT21
HumeralLAT22
HumeralLAT23
HumeralLAT24
HumeralLAT25
HumeralLAT26
HumeralLAT27
HumeralLAT28
previous arrow
next arrow
HumeralLAT21
HumeralLAT22
HumeralLAT23
HumeralLAT24
HumeralLAT25
HumeralLAT26
HumeralLAT27
HumeralLAT28
previous arrow
next arrow

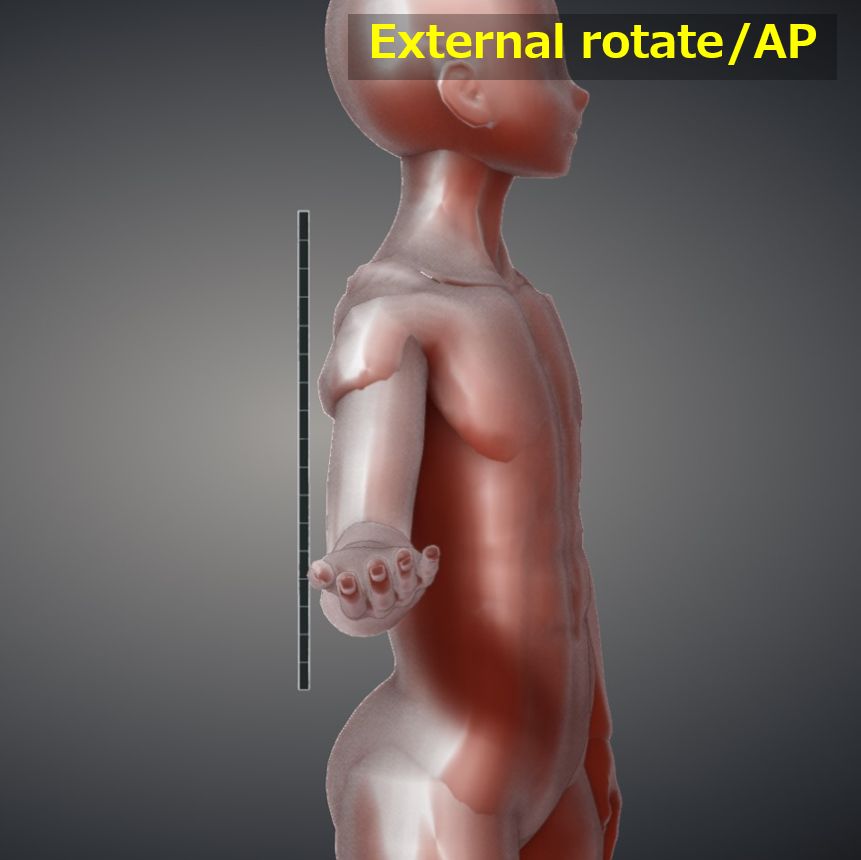

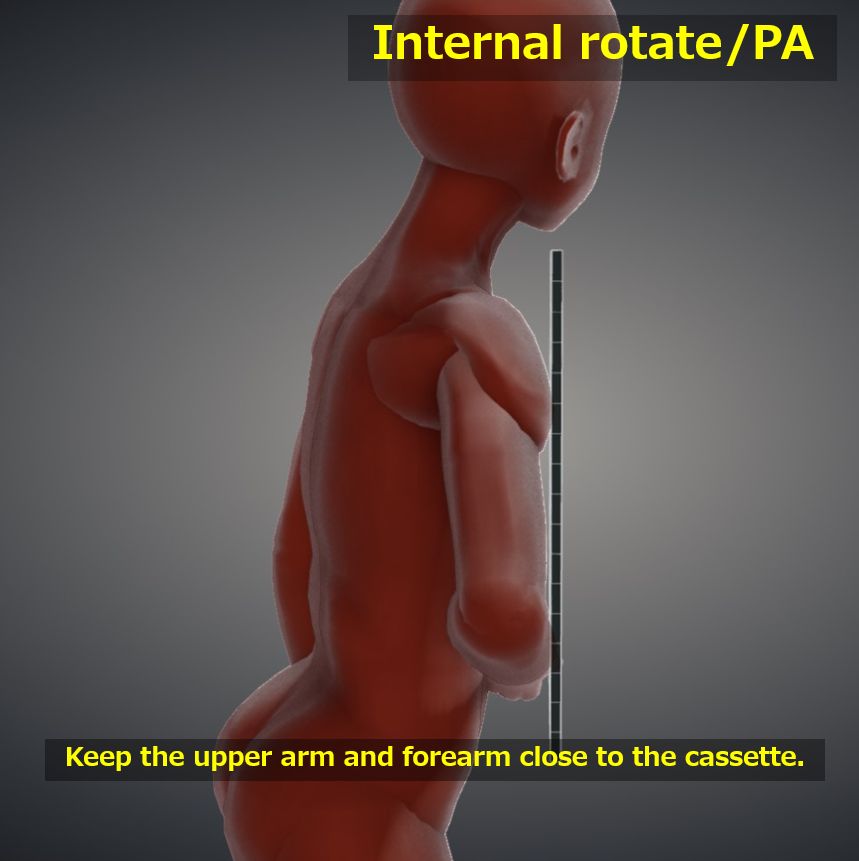

Both AP and PA directions can be used for imaging (see figure above).

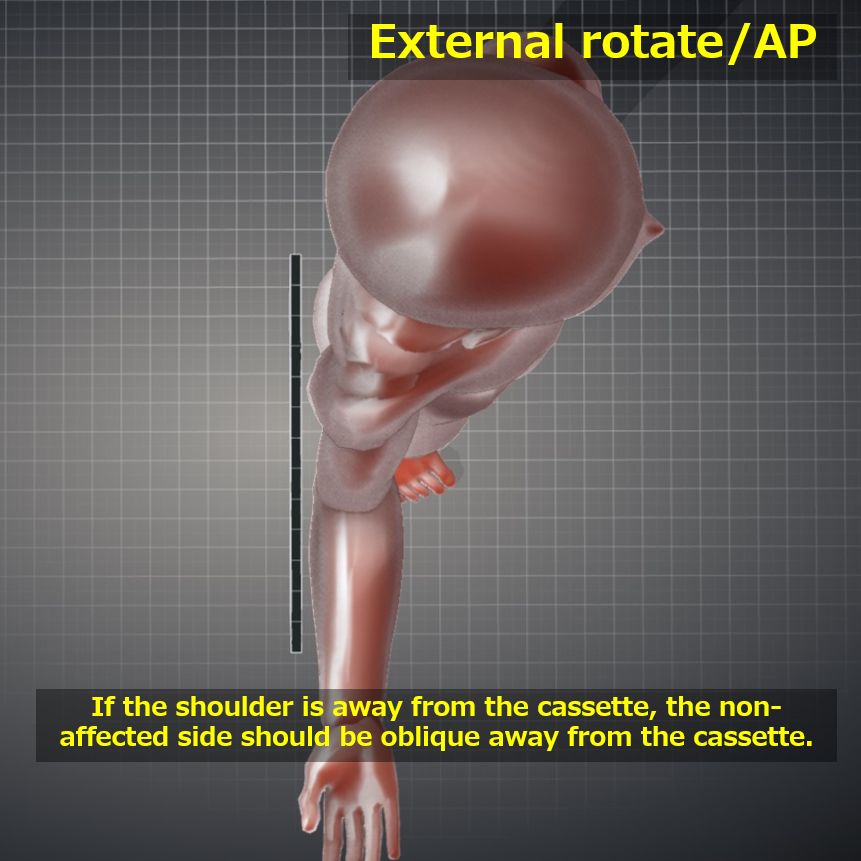

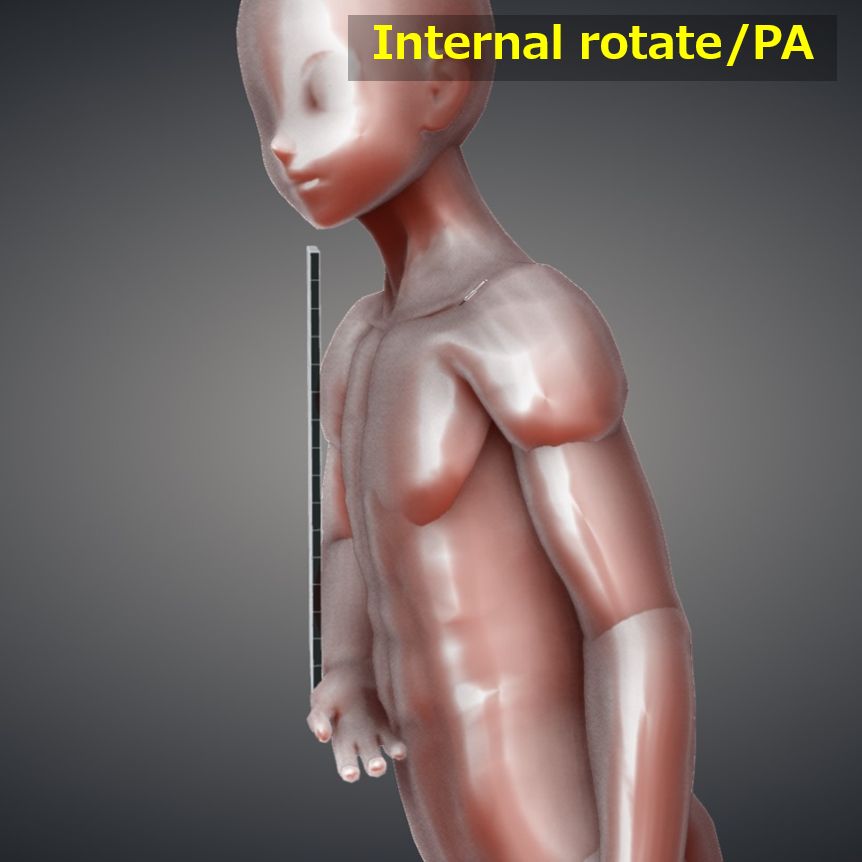

The shoulder should be internally and externally rotated so that the elbow joint is lateral and the line connecting the medial and lateral humeral epicondyles is perpendicular to the cassette. Oblique position if necessary.
Select an appropriately sized cassette so that each shoulder joint to elbow joint is included with a margin of about 5 cm.

CR, distance, field size

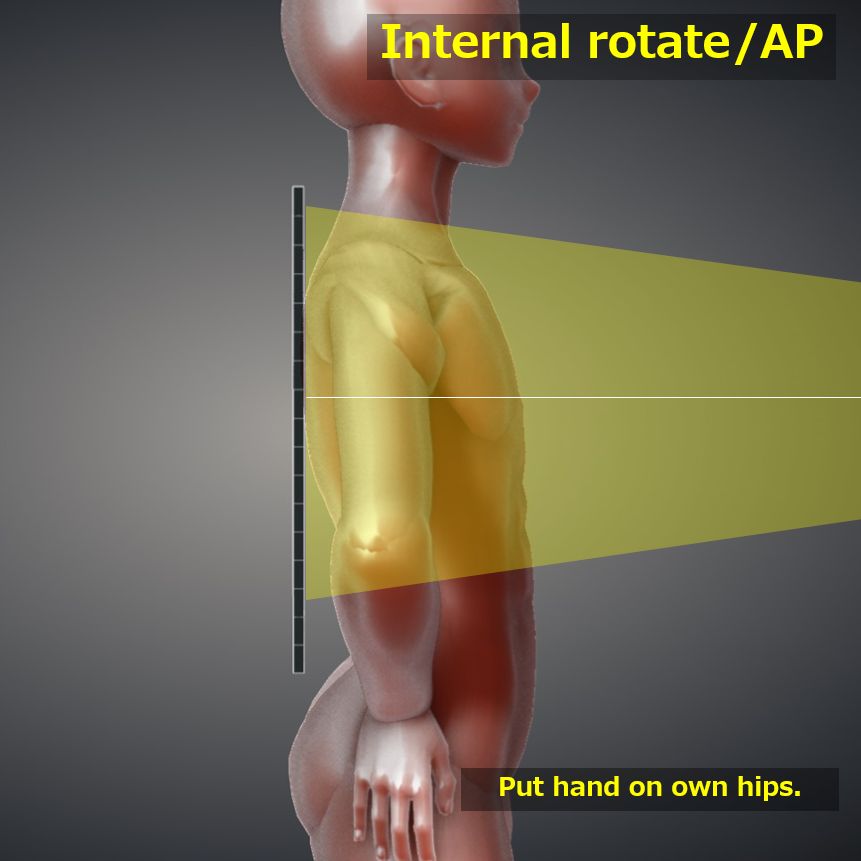

CR : Vertical incidence at the left and right center of the upper arm at a height midway between the shoulder and elbow joints.
Distance : 100cm

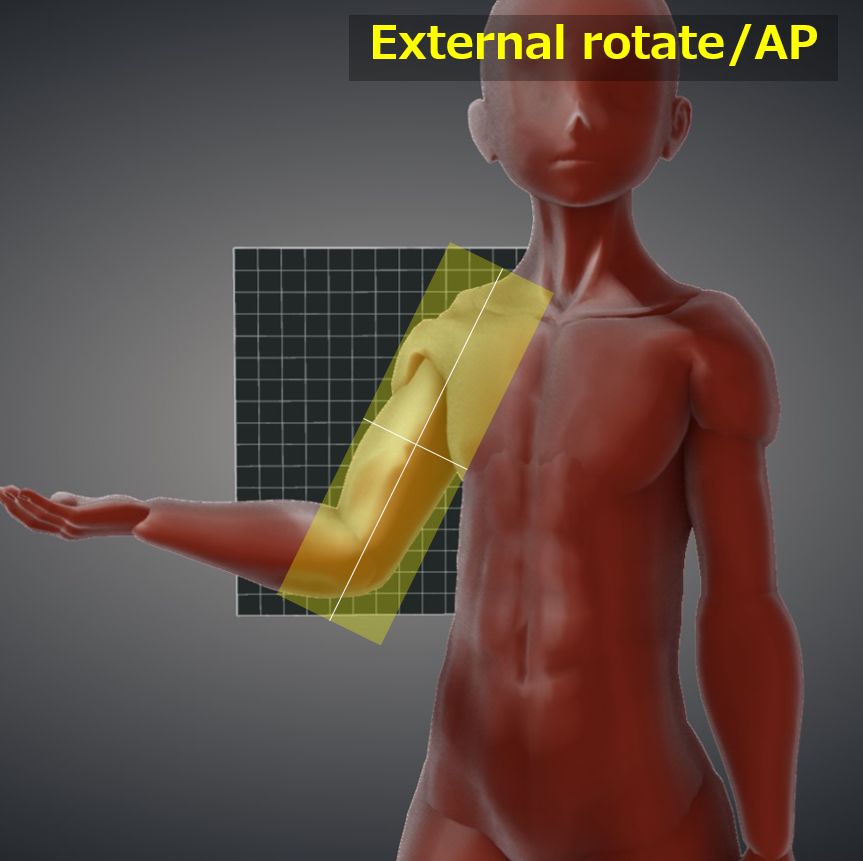

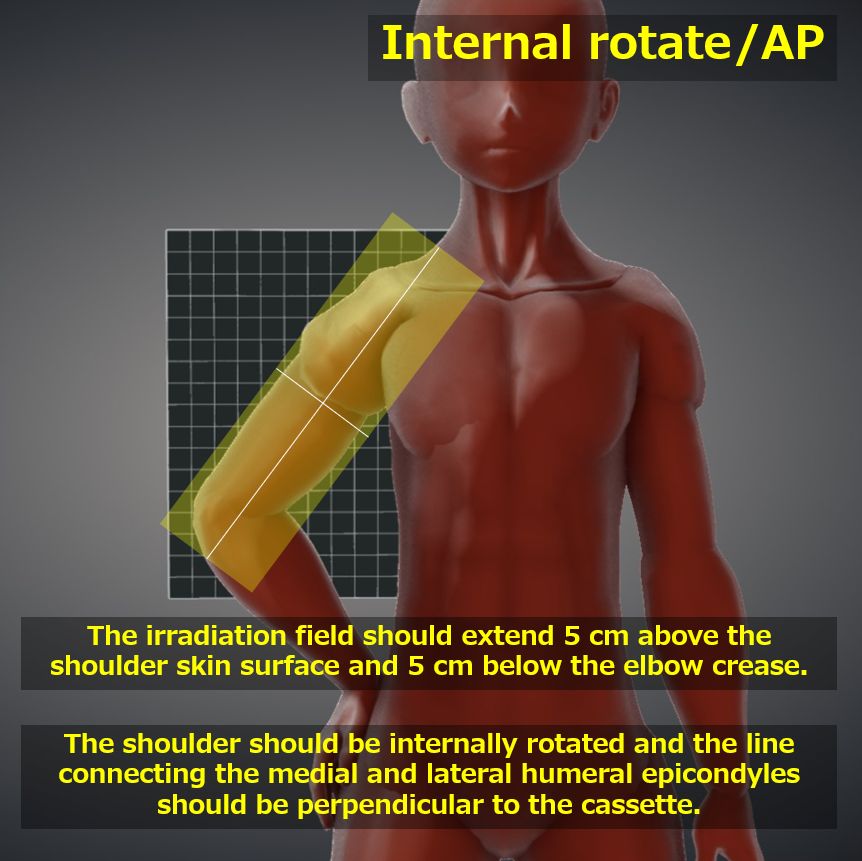

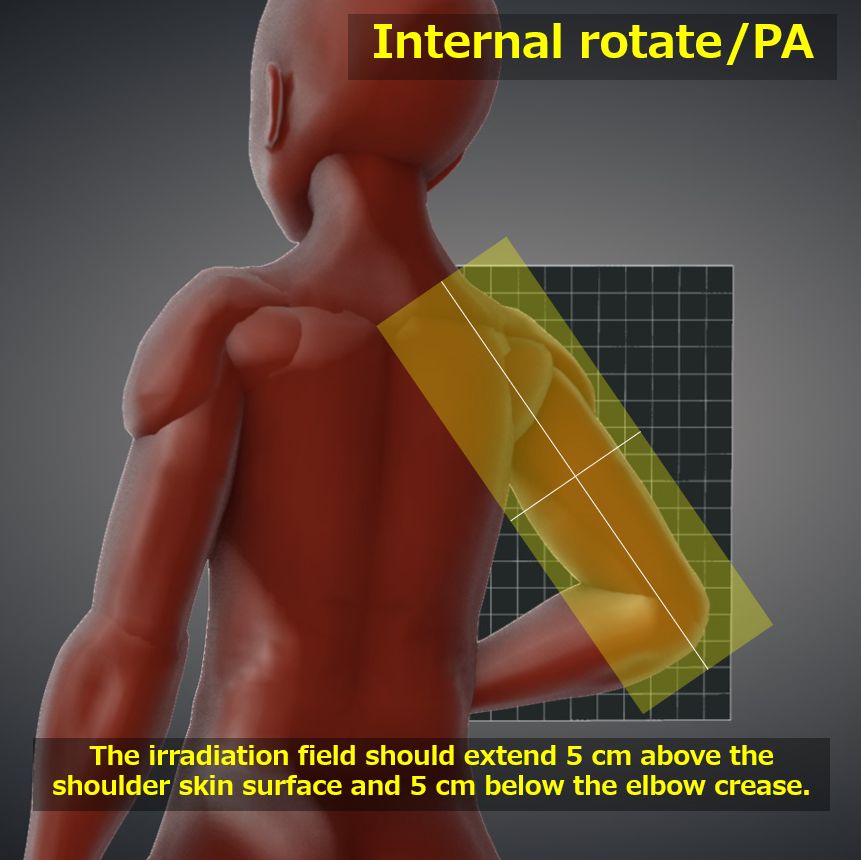

Field size : The upper edge should be 5 cm above the shoulder skin surface, the lower edge should be 5 cm below the elbow crease, and the left and right sides should be limited to the skin surface.

Exposure condition
58kV / 10mAs
Grid ( – )
Suspend respiration.

Image, check-point
Normal (Radiopaedia)

HumeralLAT29
HumeralLAT30
previous arrow
next arrow
HumeralLAT29
HumeralLAT30
previous arrow
next arrow

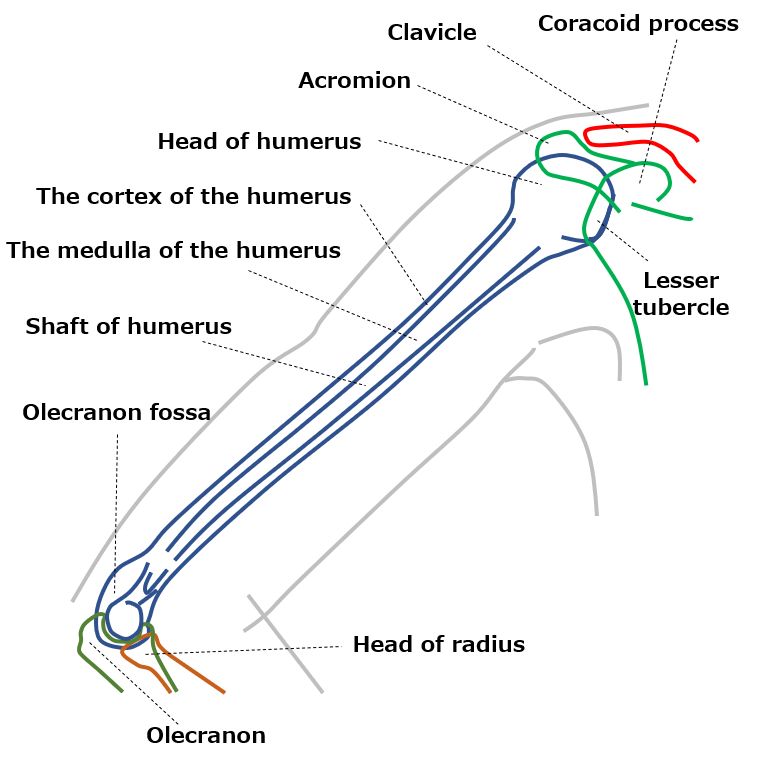

Good contrast between the cortex and medulla of the humeral diaphysis should be observed.
Soft tissues should also be observable.
Shoulder to elbow joints should be included.

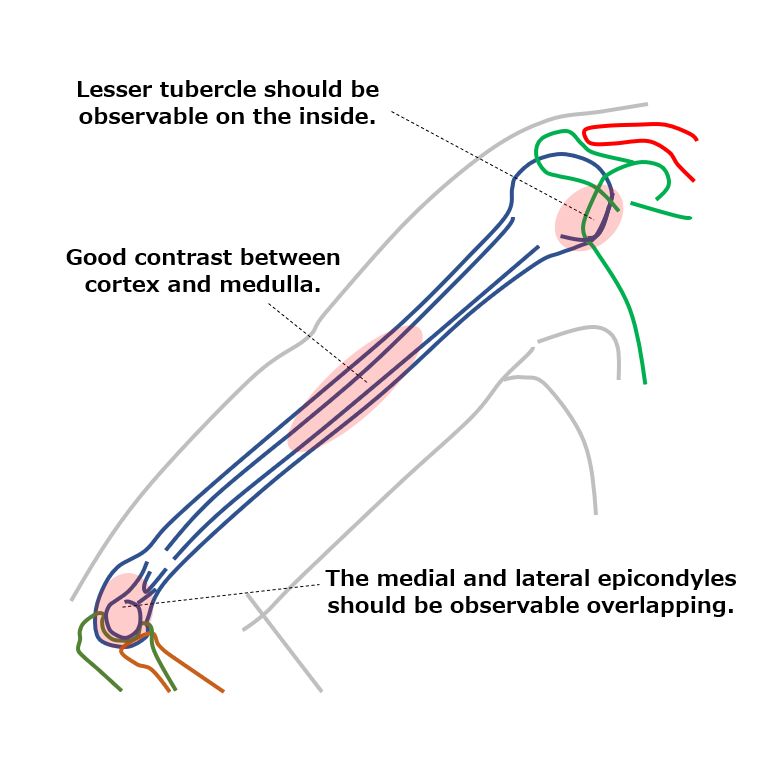

A lesser tubercle should be observed on the medial side of the humerus. The greater tubercle should overlap the humeral head.
The medial and lateral humeral epicondyles should overlap.
